From CRPA anti-jam systems and high-dynamic receivers to gun-hardened GNSS chipsets, SkyTraq delivers resilient PNT for contested signals, supersonic flight, and extreme shock.
Jamming. Supersonic flight. Gun-launch shock. Each challenges GNSS differently. SkyTraq answers with purpose-built hardware—from CRPA anti-jam systems and high-dynamic receivers to gun-hardened chipsets, each sized for its platform.
01
An 8-element CRPA forms up to 7 independent nulls and holds 39 dB of suppression with seven wideband jammers running at once. Against a single CW jammer it exceeds 65 dB.
02
Galileo OSNMA verifies navigation data cryptographically, so a transmitter that imitates the constellation does not become a valid fix.
03
A 5 x 5 mm QFN40 chipset qualified for G-hardening reacquires in under 2 seconds at 1300 m/s after a 60 second outage, and tracks to 2000 m/s.
01 — Contested spectrum
Controlled reception pattern antenna receivers that steer nulls onto jammers as they appear and authenticate Galileo OSNMA against spoofing. Each unit also outputs jammer-removed RF, so an existing receiver behind it keeps working without being redesigned.

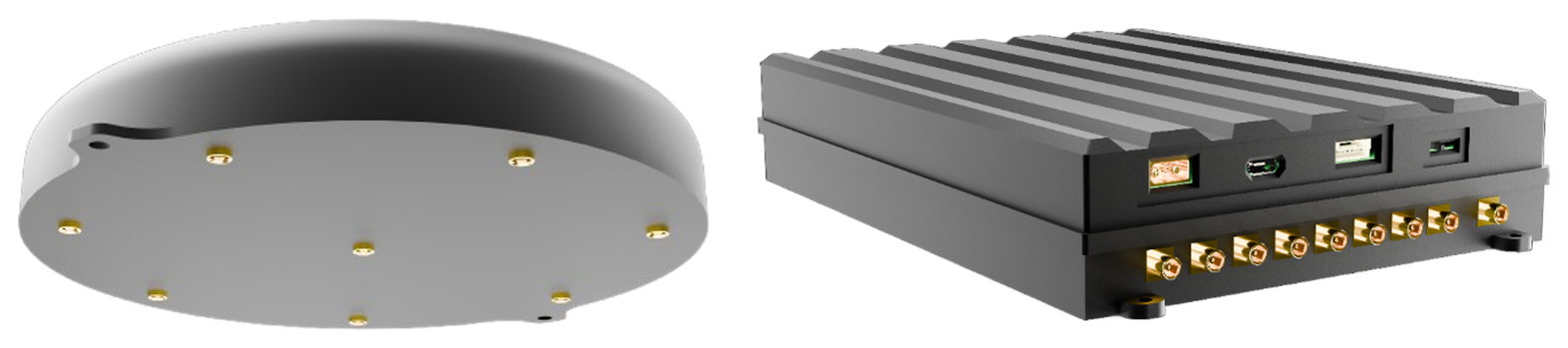

8-element CRPA, 7 nulls
Plug-and-play anti-jam receiver for mass deployment across unmanned and autonomous defense systems. The 8-element array forms up to 7 nulls to defeat multi-source wideband jamming, and with Galileo OSNMA anti-spoofing.

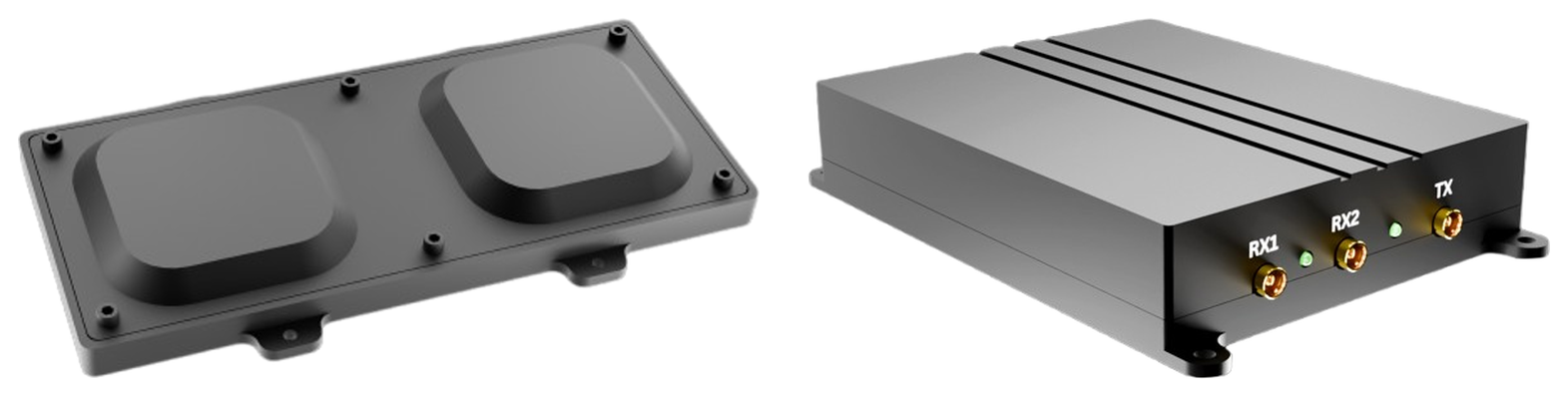

5-tap STAP CRPA
Space-time adaptive processing across a two-element array, using five taps per element to null jammers in time as well as space. Cost engineered for high-volume applications.

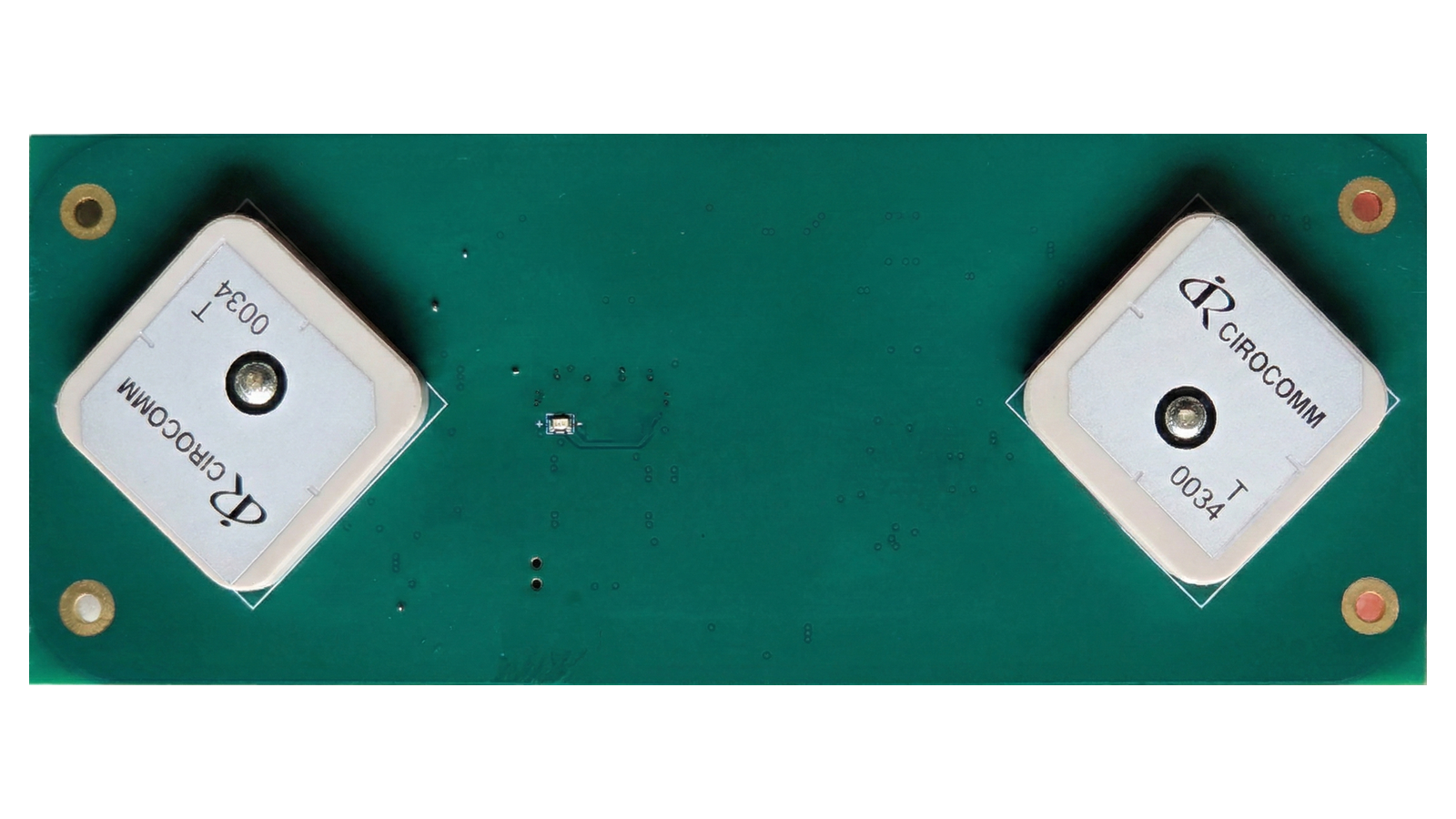

2-element CRPA board
Low-cost, low-power dual-element CRPA on a single board, forming a null against the dominant interferer with 0.7 W power consumption. Suitable for applications requiring small size, light weight CRPA.
02 — High-velocity flight
A 10.1 x 9.7 mm L1 multi-constellation module that holds position, velocity and timing through supersonic flight, rated to 1000 m/s and 4 G.

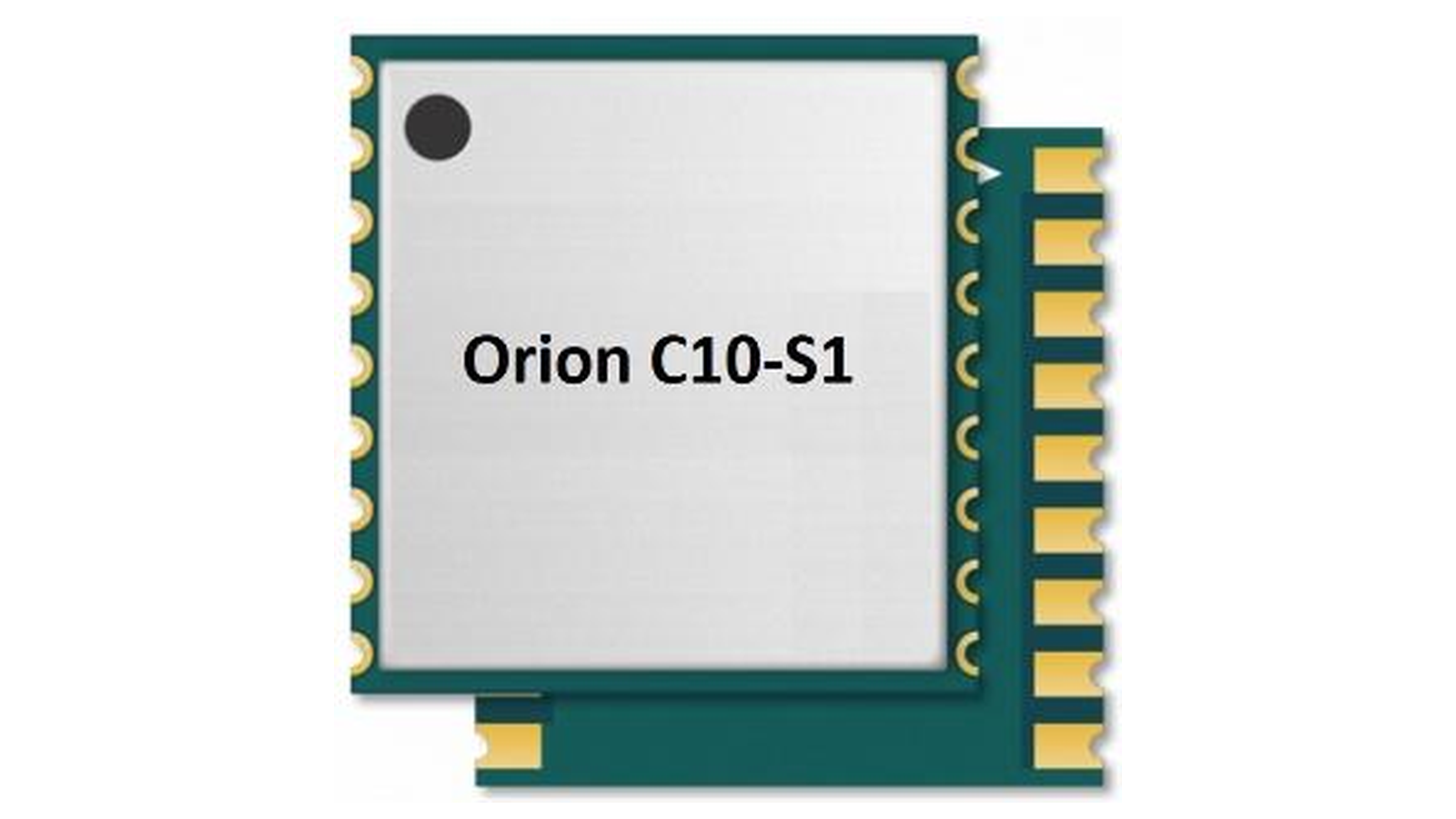

Supersonic GNSS module
L1 single-frequency receiver for supersonic defense platforms, tracking GPS, GLONASS, Galileo, BDS and QZSS to 2 m CEP in a module small enough for the airframes that fly fastest.
03 — Gun-launched munitions

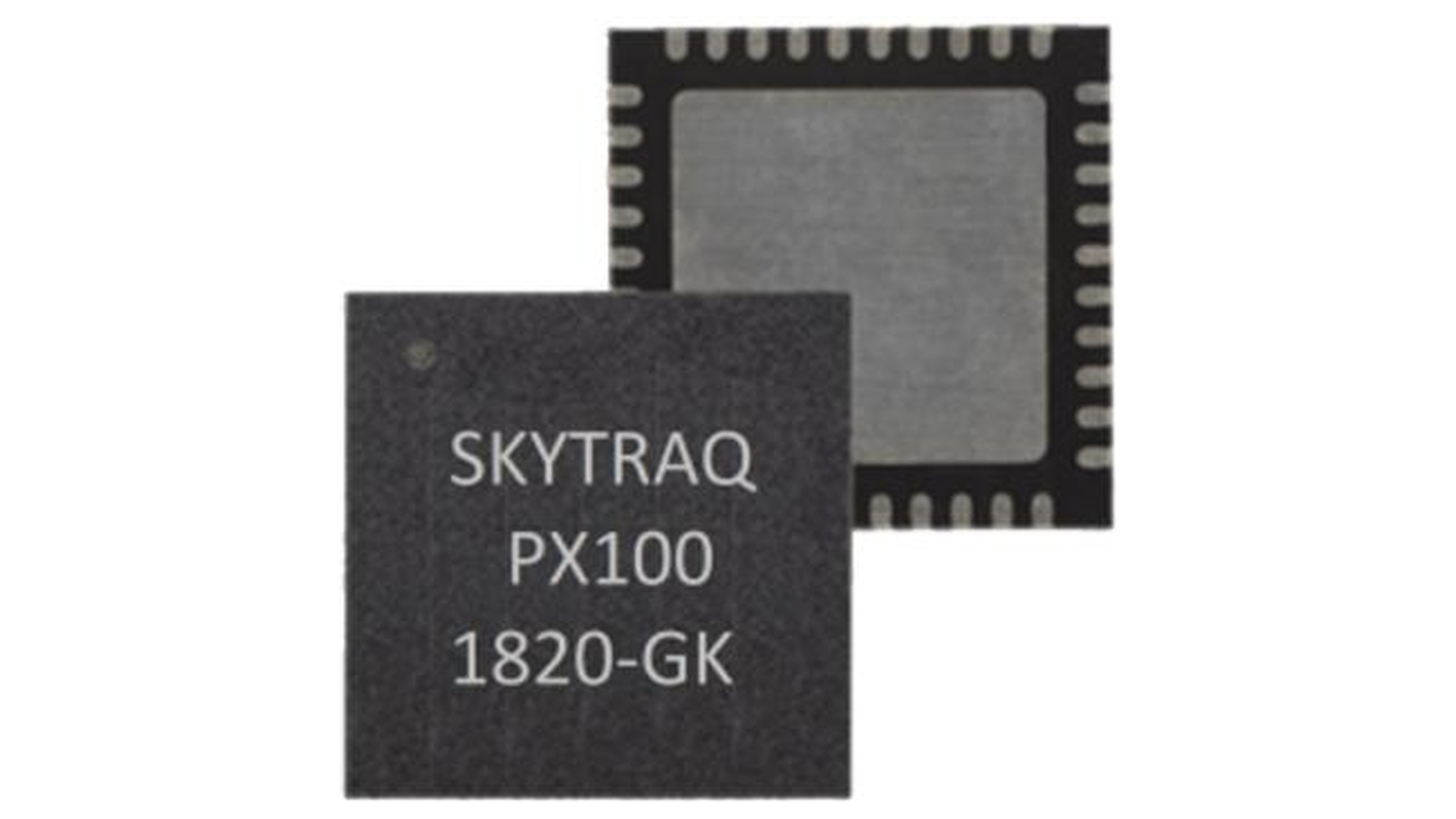

A 5mm x 5mm QFN40 GPS receiver chipset for g-hardened 155 mm artillery and other cannon-launched precision munitions, designed to have fast TTFF on the way out of the tube
GPS chipset for G-hardened precision guidance
5 x 5 mm QFN40 GPS chipset for precision guidance kits. First fix lands about 7 seconds after launch at 1300 m/s muzzle velocity on a 40 dB-Hz signal, and about 10 seconds on 35 dB-Hz.
Custom application
The defense range is built on the same 5 x 5 mm QFN40 GNSS chipset. Firmware is customized to the application, and the same silicon forms an L1, L1/L2, L1/L5 or L1/L2/L5 receiver.
L1
GPS/QZSS L1, GLONASS L1, Galileo E1, BDS B1I signal reception.
L1/L2
GPS/QZSS L1/L2C, GLONASS L1/L2, Galileo E1/E5b, BDS B1I/B2I signal reception.
L1/L5
GPS/QZSS L1/L5, Galileo E1/E5a, BDS B1I/B2a, NavIC L5 signal reception.
L1/L2/L5
GPS/QZSS L1/L2C/L5, Galileo E1/E5a/E5b, BDS B1I/B2I/B2a, GLONASS L1/L2, NavIC L5 signal reception.
Fleet-scale anti-jam PNT for UAS, UGV and USV. AJAS-8 and AJAS-2 field as plug-and-play units, so the platform's existing receiver does not have to be redesigned around them.
PX100-0S-PGK carries the guidance fix through 155 mm gun launch, acquiring at supersonic velocity on the way out of the tube.
Orion C10-S1 holds position, velocity and timing to 1000 m/s and 4 G in a 10.1 x 9.7 mm module.
RFA-2G protects a 1PPS timing reference against interference on 0.7 W, at a size and cost that suits distributed nodes.
A GNSS silicon house, not a systems integrator reselling someone else's receiver. The chipset, the firmware and the anti-jam processing are all ours, which is why the size, power and cost land where they do.
Engineering contact
Tell us about the platform, the threat environment, and the size, power and interface budget you have to work inside.
Prefer to write directly? info@skytraq.com.tw
Contact the SkyTraq team for full specifications, application fit, firmware customization, and export approval information.
